本帖最後由 s92204 於 2021-6-4 00:31 編輯
清屋放售
$4500

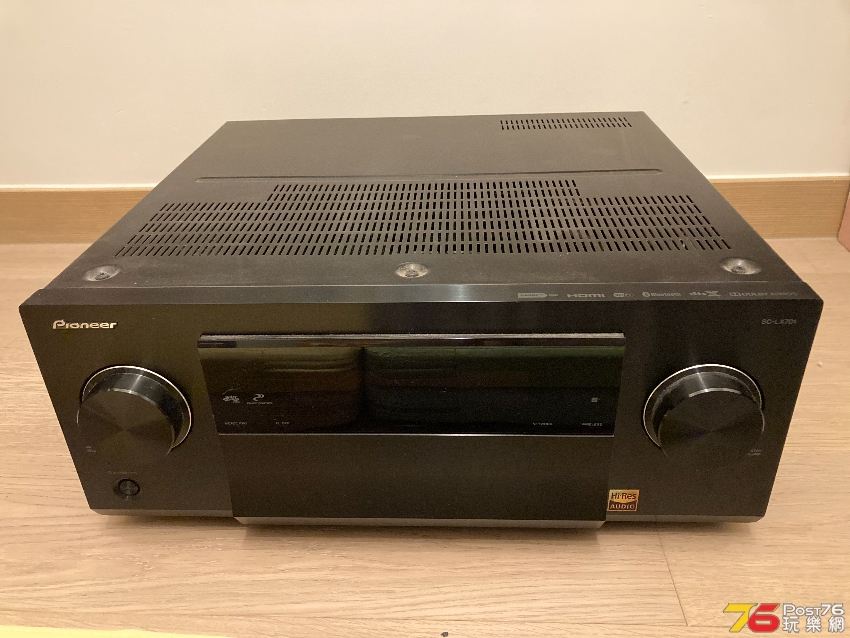

9.2-ch Class D Network AV Receiver
SC-LX701
Specification
AMPLIFICATION
Channels: 9
Amplification Type: Class D (Direct Energy HD)
760 W Multi-ch Simultaneous Drive (8 ohms, 1 kHz, THD 1.0 %)
185 W/ch (6 ohms, 1 kHz, 1ch Driven IEC)
CONSTRUCTION DESIGN
Advanced Direct Construction
Rigid Trans-Stabilizer
Anti-Standing Wave Insulator
AUDIO FEATURES
Dolby Atmos®/Dolby Surround
DTS:X/DTS Neural:X
Reflex Optimizer
Dolby® TrueHD/Dolby Digital Plus
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS-HD Express
DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2ch)
DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
Digital Core DSP Engine Analog Devices Sharc x2+TI Aureus x1
ESS SABRE32 Ultra DAC (ES9016S)
HDMI Audio Return Channel (ARC)
MCACC Pro Auto Room Tuning
* Full Band Phase Control
* Subwoofer EQ (4 Band)
Advanced Sound Retriever (2ch)
Advanced Surround Modes
* Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance, Auto Surround
VIDEO FEATURES
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR (HDR10/Dolby Vision*1) and BT.2020 Pass-through Support
Ultra HD Upscaling (1080p 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), "x.v.Colour"
HOME NETWORK FEATURES
FlareConnect™*1 for Multi-room Audio
Chromecast built-in*1, 2
DTS Play-Fi*1
Apple AirPlay Certified
Amazon Music*3, Spotify, Tidal*1, and Deezer*1 Music Streaming Services Ready*4
Internet Radio (TuneIn)
Hi-Res Audio File Playback via USB/Network
* Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
* 11.2/5.6/2.8 MHz DSD Playback
* Dolby® TrueHD Playback (USB only)
CONVENIENCE FEATURES
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
Pioneer Remote App Ready (iOS/Android)*5
iControlAV5 Remote Control App Ready (iOS/Android)*5
New GUI with System/Network Setup Menu
Auto Power Off in HDMI Standby Through
AM/FM Tuner 40 Presets
Sleep Timer
User-Friendly Simple Remote Control
FRONT TERMINALS
HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In
Phones 1 Out

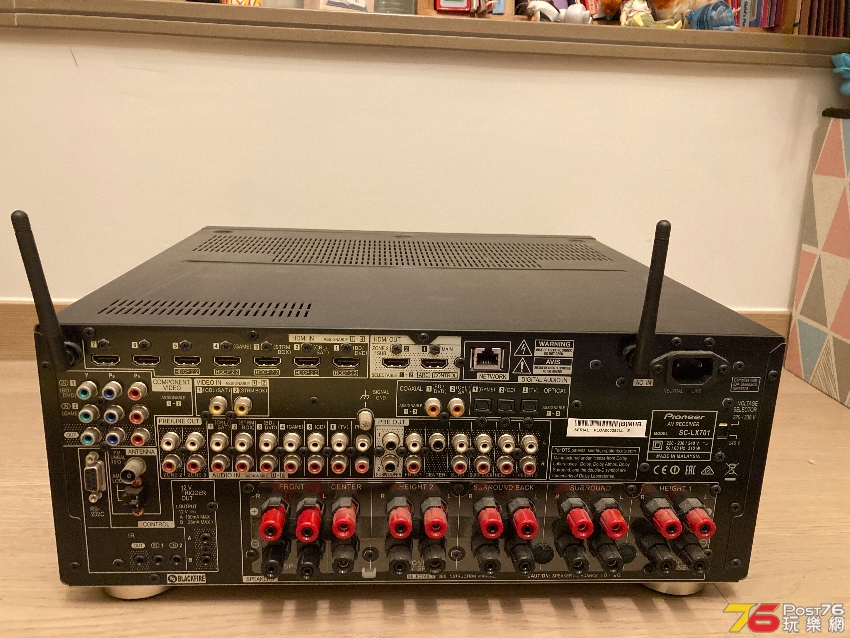

REAR TERMINALS
HDMI 7 In (4 Assignable)
HDMI 2 Out (1 for MAIN, 1 for SUB)
Ethernet 1 In
AV (Component) 2 In (Assignable)
AV (Composite) 2 In (Assignable)
Audio 2 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 2 In (Assignable)
Digital Optical 3 In (Assignable)
Subwoofer 2 Pre Out
Zone 2/ZONE 3 Pre/Line Out
Speaker 11 ch Out (FRONT, CENTER, HEIGHT 2/ZONE 2/SP-B, SURROUND BACK, SURROUND, HEIGHT 1/Bi-AMP/ZONE 3)
IR 1 In/1 Out
12 V Trigger 2 Out/RS-232C
FM/AM Antenna
SPECIFICATIONS
Power Requirements: AC 220-230 V, 50/60 Hz
Power Consumption/Standby: 310 W/0.15 W
Dimensions (W x H x D): 435 x 185 x 441 mm
Weight: 15.3 kg |
