樓主: jacky622

[隨身耳擴] Pioneer U-05 USB-DAC/Headphone Amplifier 討論區

  [複製鏈接]

4

主題

100

回帖

0

精華

星級玩家

Rank: 7Rank: 7Rank: 7

積分
21173
發表於 2014-8-16 22:22 | 顯示全部樓層
waiting for this for a long time!

74

主題

2167

回帖

5

精華

黃金玩家

Rank: 9Rank: 9Rank: 9

積分
92365

76-FC 藍寶石勲章

發表於 2014-8-16 22:30 | 顯示全部樓層
roychong2401 發表於 2014-8-16 13:56
多謝師兄解答,但小弟睇完都吾明⋯
W等於電壓二次方除電阻?
係42k ohm呀⋯呢個係venturecraft ...

42kohm 似 input 規格多D,這真是 headphone output ?
音源:DS411j + D100Pro Deluxe
解碼:Yulong D8, Cayin iDAC-6
耳擴:Schiit Ragnarok, Cayin IHA-6, HA1AmkII
耳機:HE6, Alpha Dog, ESP/950
HD800, HD700, HD540G, HD540-I, HD250-1, HD520, D7000,  NAD HP50

11

主題

879

回帖

0

精華

星級玩家

Rank: 7Rank: 7Rank: 7

積分
13001
發表於 2014-8-16 23:30 | 顯示全部樓層
Andykong 發表於 2014-8-16 22:30
42kohm 似 input 規格多D,這真是 headphone output ?

42kohms output
(Post76 Android 手機版送出)
雨に降られてぬかるんだ道でも
いつかはまた晴れる日が来るから?

78

主題

631

回帖

1

精華

黃金玩家

Rank: 9Rank: 9Rank: 9

積分
96567

76 榮譽忠義勲章

 樓主| 發表於 2014-8-16 23:55 | 顯示全部樓層
本帖最後由 jacky622 於 2014-8-17 00:23 編輯

pioneer official spec


主な仕様
対応サンプリング周波数USB入力(PCM) : 44.1 kHz、48 kHz、88.2 kHz
    96 kHz、176.4 kHz、192 kHz、352.8 kHz、384 kHz(16、24、32 bit)
    USB入力(DSD) : 2.8 MHz、5.6 MHz
    COAXIAL/OPTICAL/AES/EBU入力 : 32 kHz、44.1 kHz、48 kHz
    88.2 kHz、96 kHz、176.4 kHz、192 kHz(16、24 bit)
デジタル入力入力端子USB1系統、COAXIAL2系統、OPTICAL2系統、AES/EBU(XLR3)1系統
アナログ出力出力端子アンバランス(RCA):1系統
    バランス(XLR3):1系統(レベル固定/可変切替式、位相切替機能付き)
ライン出力電圧/
インピーダンス
アンバランス(RCA):2.4 V/100 Ω
    バランス(XLR3):4.4 V/100 Ω
周波数特性4 Hz ~ 100 kHz(-3.0 dB)
全高調波歪率アンバランス(RCA) 0.0012 %
    バランス(XLR3) 0.0007 %
S/N比(A-weight)アンバランス(RCA):114 dB
    バランス(XLR3):117 dB
ダイナミックレンジ16 bit:96 dB、24 bit・32 bit:118 dB
ヘッドホン出力出力端子アンバランス(STD)1系統
    バランス(XLR3)1系統、バランス(XLR4)1系統
出力アンバランス(STD):180 mW+180 mW (32 Ω)
    バランス(XLR3/XLR4):300 mW+300 mW (32 Ω)
対応インピーダンス16 Ω~600 Ω
周波数特性4 Hz ~ 80 kHz(-3.0 dB)
全高調波歪率(出力-3.0 dB)アンバランス(STD) 0.01 %
    バランス(XLR3/XLR4) 0.004 %
S/N比(A-weight)アンバランス(STD):106 dB
    バランス(XLR3/XLR4):113 dB
その他電源電圧AC100 V、50 Hz/60 Hz
消費電力35 W
待機時消費電力0.27 W
外形寸法296 mm(W)×101 mm(H)×271 mm(D)
質量6.3 kg
付属品リモコン、単4形乾電池x2、電源コード、取扱説明書、保証書

78

主題

631

回帖

1

精華

黃金玩家

Rank: 9Rank: 9Rank: 9

積分
96567

76 榮譽忠義勲章

 樓主| 發表於 2014-8-17 00:06 | 顯示全部樓層
本帖最後由 jacky622 於 2014-8-17 00:08 編輯

用google translate左個日本review

http://www.phileweb.com/review/article/201407/24/1285_4.html

Combination test of popular headphones!



Mr. Iwai to do listen


So I think the combination of a variety of headphones and U-05 is from here, and want to deliver a review about the sound quality. Sennheiser "HD800" (open type), SHURE "SRH1540" and (sealed), Bayer dynamic is the largest high-impedance machine We provide special this time is a "T1". As we have also re-balance the drive cable for SRH1540 and HD800, and I went also compared with the single-ended connection, respectively. for U-05 still used in the audition was not in the final tuning model, please acknowledge beforehand that there is also a location that will be the impression that unlike the retail version. [size=+2]

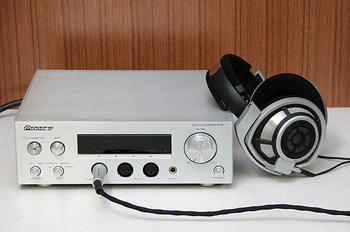

Sennheiser HD800




The combination with Sennheiser HD800


First of all, let's try the state that put the lock range adjustment function. Low range is tightening more and Yuku narrow down the lock width up to the point of the last minute, the focus of the sound image is also determined sharp and clear.Representation of silence feeling growing, delicate tone of lingering seems to come looking better more. I tried individually also Up Sampling but, Up Sampling is possible to select two stages of HIGH and LOW, LOW is 352.8kHz 176.4kHz, if HIGH if the source of 44.1kHz. Outlook of the sound field becomes deeper in LOW, sound also rising well expires, change in clear sound. Sound away is better when it becomes HIGH, the melody of the wind instrument feels more refreshing. Gradation of the lingering increases, the smoothness of the texture also improved. It is sound high reality. And exhilarating good intonation tone is full of space When you enable alone Hi-bit 32, elegance increases melody of wind instrument also elegant. Dumping of low frequency is also expressed rich elasticity, it was an exquisite taste braking feeling. It is a sound trend can afford better growth. The scaling up to 384kHz put HIGH Up Sampling of the 192kHz / 24bit sound followed. I tried to listen in a state in which to enable the lock range adjustment, but the melody of strings fresh cool expands to the nines, carved me caught firmly deep delicate nuances also contours of the sound image. Harmony rich rich Yuku spread to space also intonation of low-end. It is a pristine sound without incidental crisp feeling is also good. Audio scaler to release, Let's proceed with listen in a state in which to enable the direct mode and lock the adjustment range is from here. The low-toned high braking, the sound image is drawn in sharp. I was able to mouth of vocal stands out to cool, to obtain at the same time also a wet texture and smoothness. Sense of attack is also a sharp vivid, but the density of the low-frequency feeling exists firmly in, the low-end to booming thickness in piano. Finely harmony of the orchestra also Tsubudachi, I can enjoy a fresh sense of nuance. Braking feeling between low frequency also increased to become a high-resolution sound source, the outlook for sound field day become deeply. Movement of the sound image also a supple localization is also clear. It is a good smooth sound feeling Tsubudachi become supple sound good elasticity sense when it comes to DSD sound source. Movement of the mouth has also been lifted to real smart also fleshy vocal.

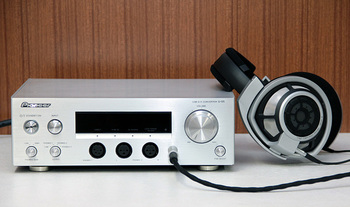

Is the sound balance drive with cable re-CH800S Subsequently, the spatial seamless and height of the S / N is pulled out better. Mouth of vocal also becomes depiction organic supple, localization also a very natural. Sound is emitted impression fluffy sound away also wonderfully in DSD sound source, without the rise of the sound is also clogging. Dynamism is also high, elasticity sense of low frequency is also natural.Sound image a three-dimensional representation, the separation of each part also higher transparency of the space well. Speedy also extrusion of rhythm vivid cut also rock sound. It was possible that in addition to the sound sense of the thick wick down the center of gravity, to realize to fully sound high drive force stable and spatial representation expressive lose to high-end machine of U-05.

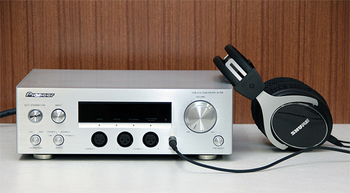

SHURE SRH1540


The combination with SHURE SRH1540


Popular models of high-end sealed headphone, second one is SRH1540. Texture depiction of good gloss over the high-frequency and the thickness of the low-frequency region's characteristic in a single-ended connection. Orchestral instrument to lift refreshing well needle, low-end sounds To stout. Focus localization of the sound image is sharp, good separation also Ukitachi of vocals and snare. Mouth of vocal good plump stands out in the wet well needle gloss. Distortion guitar rock is also drawn to the rich Kokimiyoku the crunch, such as cymbals and piano bright, compatible with the edge representation that was clearly of high frequency is good. Strings is Ukitachi on whether glitter Biya orchestra of high-resolution, low-end sound is also deeply, sound field Yuku filled with gorgeous harmonies. Sound dense and elegant ear per well, I combines them in a well-balanced also vividness of Tsubudachi due to the effect of harmonics.

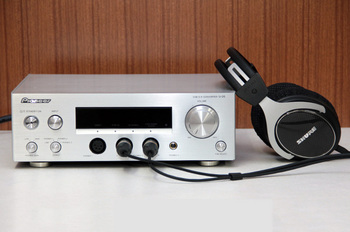

The balance drive using re cable [saeku] the "SHC-B300FSH", the focus of the sound image is tightening delicate of nuances and expressions S / N is enhanced and, low frequency were to be drawn well elasticity further. Glossy texture representation has been utilized as it is, it becomes a smooth representation high sharpness. for spatial reproduction is enhanced, lingering reverb also finely drawn gradation, separation of the attack sound also is clear. It is possible to feel the height of the amount of information unique balance drive, but could be reminded also the height of the ability hidden in headphones.

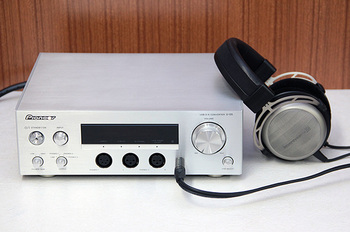

Bayer dynamic T1


The combination with Bayer dynamic T1


In the headphones and the current 600Ω Bayer dynamic high impedance most third one is a "T1". It is a sound balance of the tightening between the thickness and the high-frequency depiction good crisp delicate is fused with high dimension exquisite low-frequency representation. Orchestra of high-resolution sound source to expand finely Tsubudachi and well loose, mellow and harmonic denseness of harmony leads to goodness ear per. Cool of the lingering elegant and cool. Depiction smart feel faintly the plump, glossy mouth's wet vocals. I tend to have the spotlight to sound humble about sense of depth and spread of the sound field. There is also the impression that are completely drive well, but I did not feel so much that they sense of stability and calm of the original T1. It is believed that this point to come been improved in the retail version, but those who were captured and to have fared considerably rather Given the price range of the U-05 might be good. It can be said to be a sound good balance of goods that can be USB-DAC of the upper price range for both par further.

11

主題

879

回帖

0

精華

星級玩家

Rank: 7Rank: 7Rank: 7

積分
13001
發表於 2014-8-17 00:27 | 顯示全部樓層
jacky622 發表於 2014-8-17 00:06
用google translate左個日本review

http://www.phileweb.com/review/article/201407/24/1285_4.html

在日本呆久了英文真的差了不少
話說這篇評論對u05的評價不錯啊..
(Post76 Android 手機版送出)
雨に降られてぬかるんだ道でも
いつかはまた晴れる日が来るから?

74

主題

2167

回帖

5

精華

黃金玩家

Rank: 9Rank: 9Rank: 9

積分
92365

76-FC 藍寶石勲章

發表於 2014-8-17 01:09 | 顯示全部樓層
dicky0411 發表於 2014-8-17 00:27
在日本呆久了英文真的差了不少
話說這篇評論對u05的評價不錯啊..
(Post76 Android 手機版送出) ...

我嘗試睇篇 review, 老實說,真的覺得很無聊,因為估多過睇,估完都唔知啱唔啱,對 reviewer 又全無認識,睇過就算啦!

睇圖的話,篇 review 是用 single end 推 T1 的,我反而有興趣試下,180mW+180mW@32 ohm 的石擴在 600 ohm 時能有什麼表現,這確是值得觀察的功課!
音源:DS411j + D100Pro Deluxe
解碼:Yulong D8, Cayin iDAC-6
耳擴:Schiit Ragnarok, Cayin IHA-6, HA1AmkII
耳機:HE6, Alpha Dog, ESP/950
HD800, HD700, HD540G, HD540-I, HD250-1, HD520, D7000,  NAD HP50

74

主題

2167

回帖

5

精華

黃金玩家

Rank: 9Rank: 9Rank: 9

積分
92365

76-FC 藍寶石勲章

發表於 2014-8-17 01:09 | 顯示全部樓層
dicky0411 發表於 2014-8-16 23:30
42kohms output
(Post76 Android 手機版送出)

所以唔識答囉!
音源:DS411j + D100Pro Deluxe
解碼:Yulong D8, Cayin iDAC-6
耳擴:Schiit Ragnarok, Cayin IHA-6, HA1AmkII
耳機:HE6, Alpha Dog, ESP/950
HD800, HD700, HD540G, HD540-I, HD250-1, HD520, D7000,  NAD HP50

74

主題

2167

回帖

5

精華

黃金玩家

Rank: 9Rank: 9Rank: 9

積分
92365

76-FC 藍寶石勲章

發表於 2014-8-17 01:40 | 顯示全部樓層
roychong2401 發表於 2014-8-16 13:56
多謝師兄解答,但小弟睇完都吾明⋯
W等於電壓二次方除電阻?
係42k ohm呀⋯呢個係venturecraft ...

About Venturecraft, 搵到呢張 JPEG, 是這部嗎?看圖上的規格,Headphone output 是 80mW+80mW @ 32ohm,你所提供的 42kOhm 數據,可以有 link 讓我參考下嗎?很難想像這是 headphone output 的數值,但你既然確認是 43kOhm,便只能說我孤陋寡聞了!



About the formula,

我則在兩個地方分享過這個 formula, Post76 話我錯晒,HeadFi 話我啱,誰是誰非,You 諗 You 了!

http://post76.hk/forum.php?mod=viewthread&tid=179828
http://www.head-fi.org/t/661411/ ... /3960#post_10223347
(Ref: http://www.head-fi.org/t/661411/ ... /3975#post_10224150)
音源:DS411j + D100Pro Deluxe
解碼:Yulong D8, Cayin iDAC-6
耳擴:Schiit Ragnarok, Cayin IHA-6, HA1AmkII
耳機:HE6, Alpha Dog, ESP/950
HD800, HD700, HD540G, HD540-I, HD250-1, HD520, D7000,  NAD HP50

11

主題

70

回帖

0

精華

科林玩家

Rank: 3Rank: 3

積分
500
發表於 2014-8-17 02:01 | 顯示全部樓層
Andykong 發表於 2014-8-17 01:40
About Venturecraft, 搵到呢張 JPEG, 是這部嗎?看圖上的規格,Headphone output 是 80mW+80mW @ 32ohm, ...


http://www.venturecraft.jp/image/sdt/130805_SounDroid-E.pdf

可能佢寫錯掛... 或者我理解錯掛...
